Description

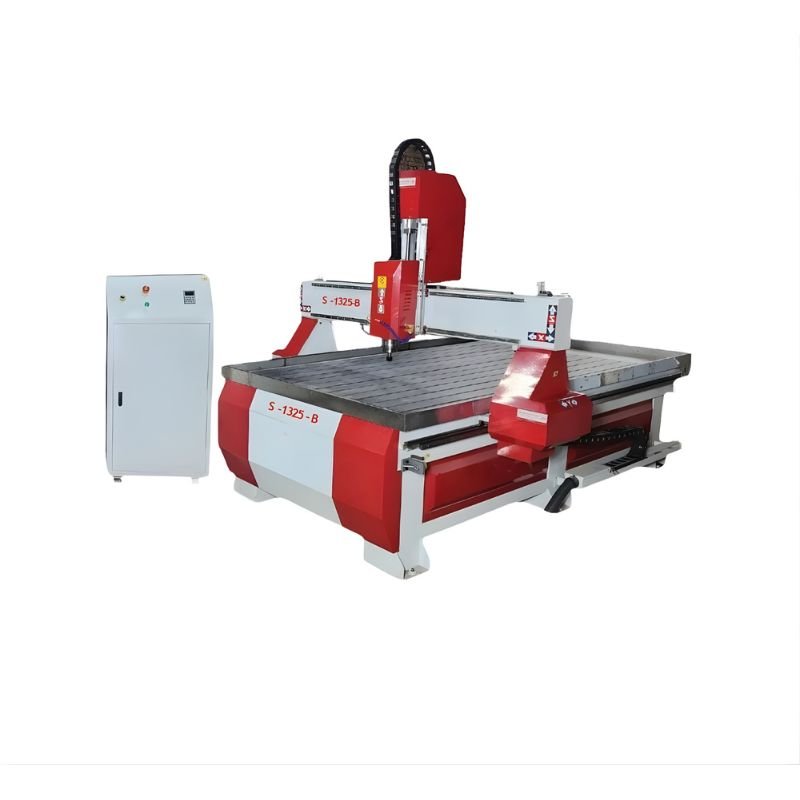

Model : 4 Axis 1325 / 1425

Working Size        :   1300mm*2500mm*300mm

Table Surface       :   T-Slot Aluminum Working Table

Body Frame          :   Best Welded Structure

X,Y,Z Structure    :  Taiwan HIWIN Rails, 25mm Taiwan Linear

 Guidway & Block 1.5m Helical Rack.

Ballscrew Connection As Coupling Type

Inverter Power      :   7.5kw Folinn Inverter

Spindle Power      :   6.0kw HQD Air cooling Spindle

X,Y,Z Motor         :   All Leadshine Servo Motor

X,Y,Z Drive          :   Leadshine Servo Drive

Control System     :   NC 95A/ DSP NK 105 G2 / G3 / A18

Working Voltage  :   AC 220 V 50HZ
