Description

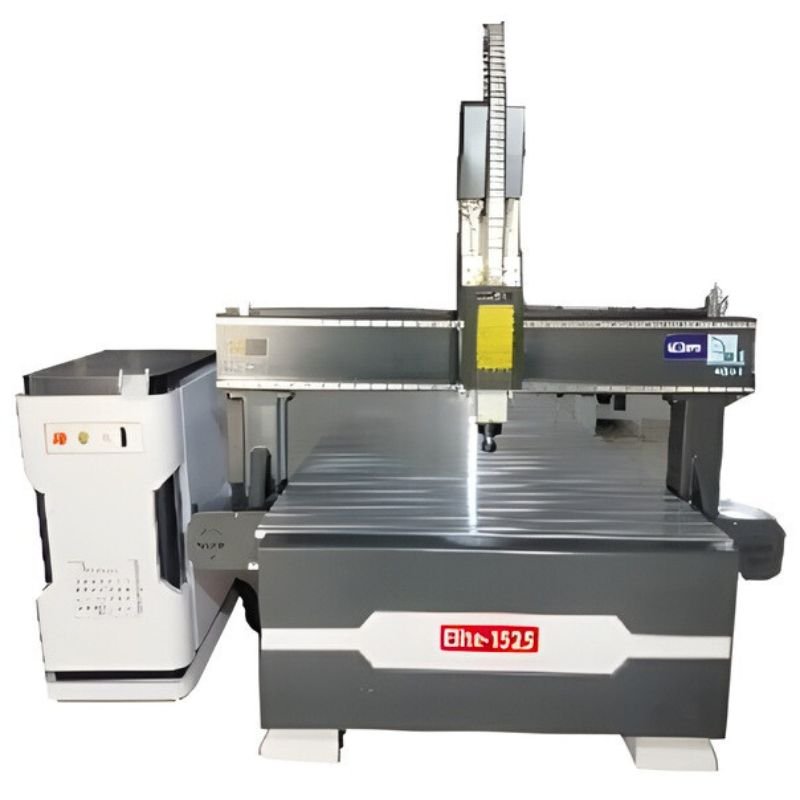

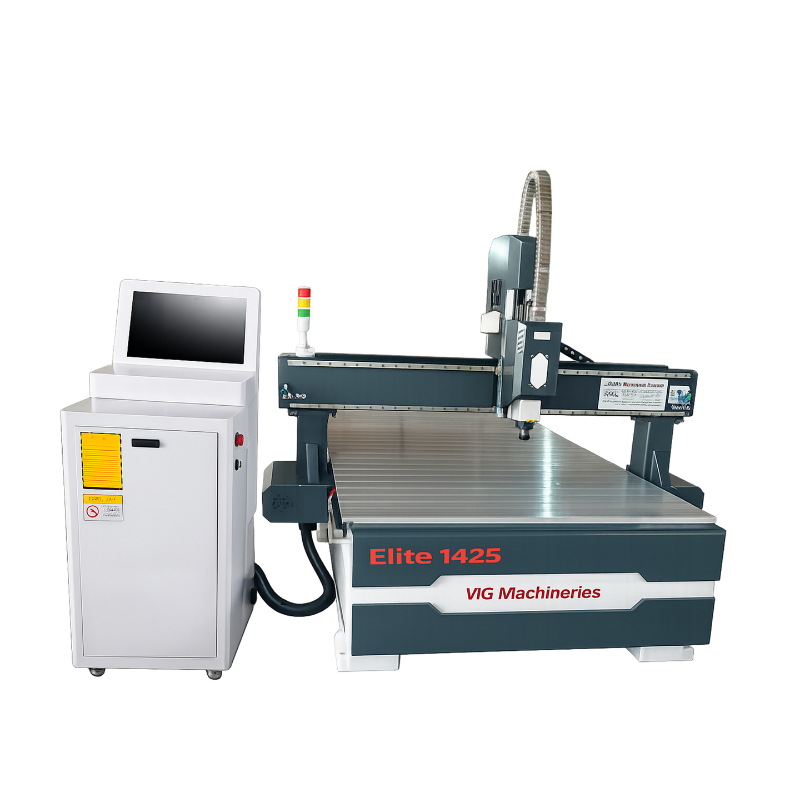

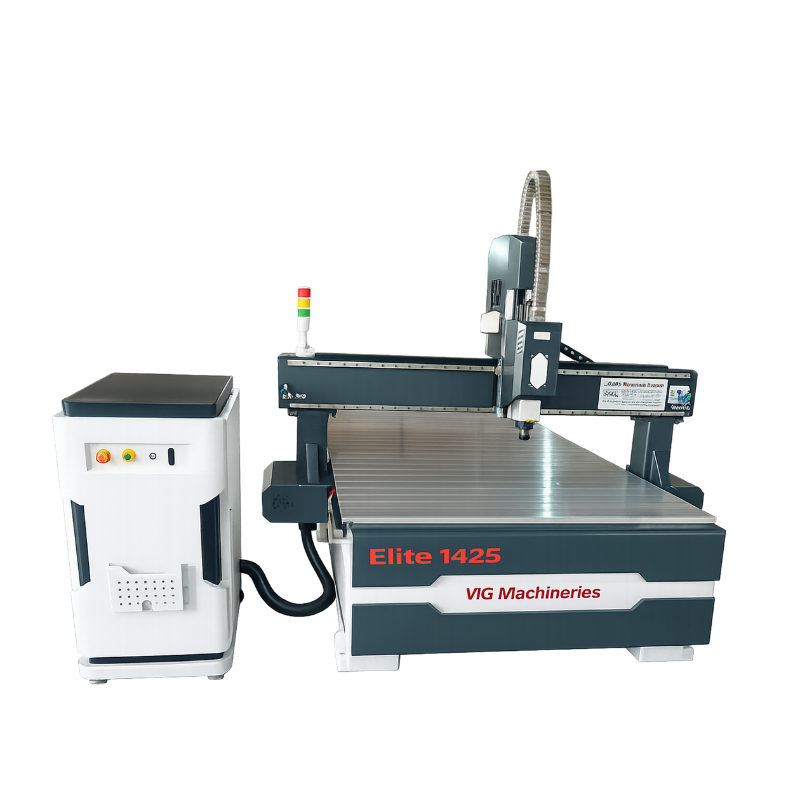

Model : Elite– 1425/ 1525

Working Size        :   1500mm*2500mm*300mm

Table Surface        :   T-Slot Aluminum Working Table

Body Frame          :   Best Welded Structure

X,Y,Z Structure    :   Taiwan HIWIN Rails, 25mm Taiwan Linear

Guidway & Block 1.5m Helical Rack.

Ballscrew Connection As Coupling Type

Inverter Power       :  7.5kw Folinn Inverter

Spindle Power       :   6.0kw HQD Air cooling Spindle

X,Y,Z Motor         :  Leadshine AC Servo Motor

X,Y,Z Drive          :  Leadshine AC Servo Drive

Control System     :  NC 95A/ DSP NK 105 G2

Working Voltage  :  AC 220 V 50HZ
