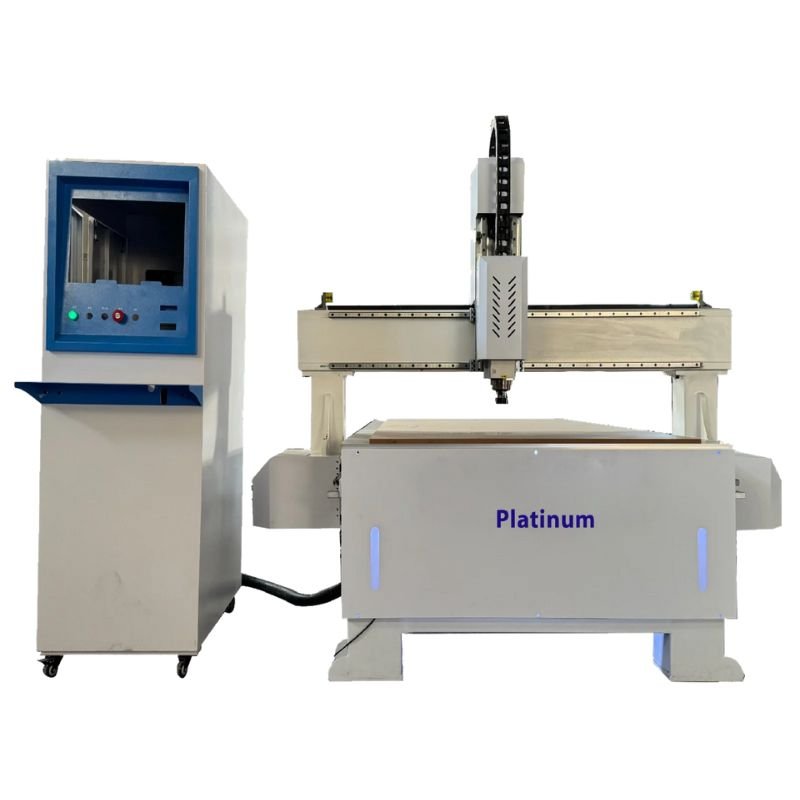

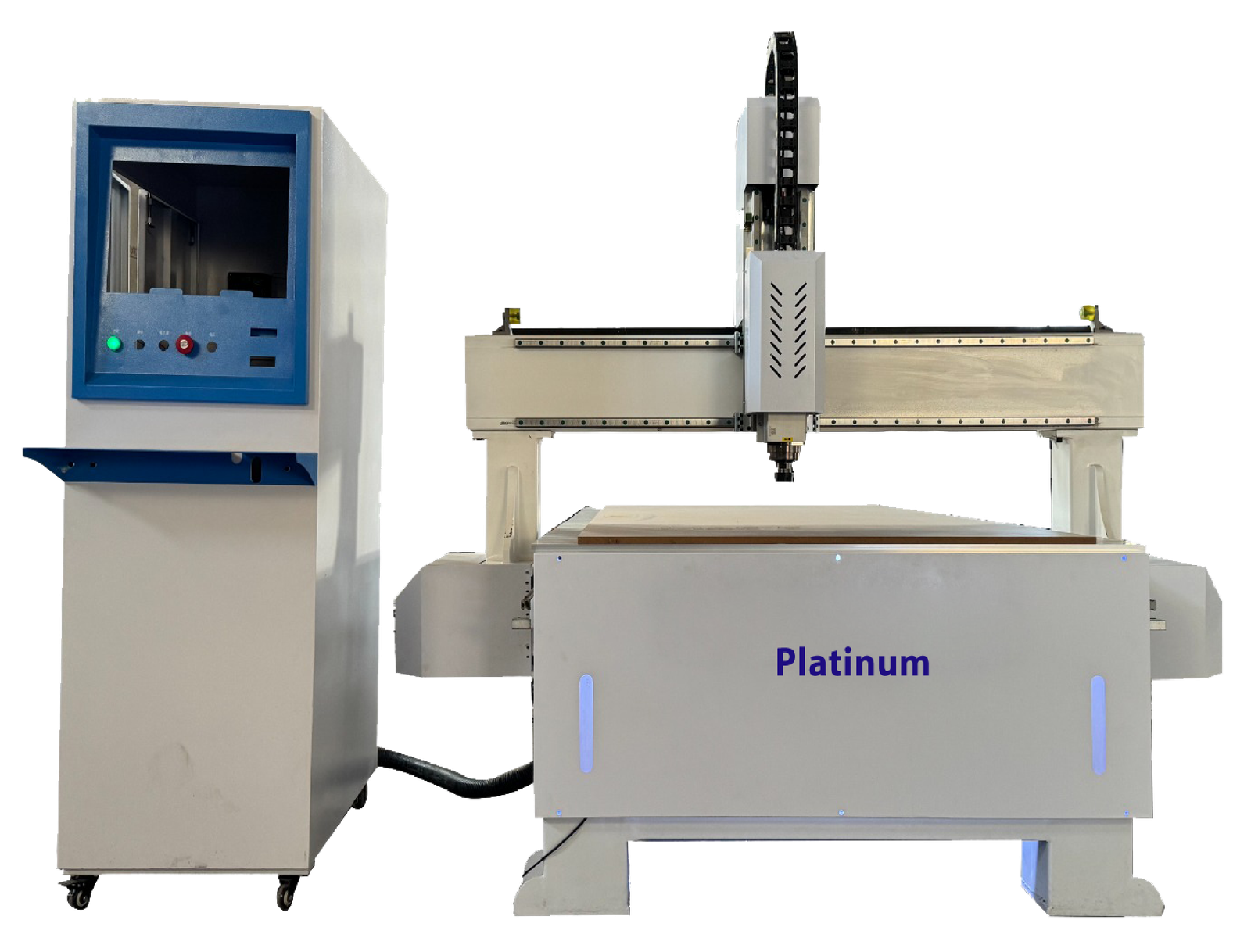

Platinum 1325, 1425, 1725, 2025

Description

Machine Model : Platinum 1325, 1425, 1725, 2025

Working Size : 1300mm*2500mm*300mm

1400mm*2500mm*300mm

1700mm*2500mm*300mm

2000mm*2500mm*300mm

Table Surface : T-Slot 2mm Aluminum Working Table

Body Frame : Best Welded Structure

X,Y,Z Structure : Taiwan PMI Rails, 25mm Taiwan Linear

Guidway & Block 1.5m Helical Rack.

Ballscrew Connection As Coupling Type

Inverter Power : 7.5kw Foling Inverter

Spindle Power : 6.0kw HQD Air cooling Spindle

X,Y,Z Motor : Yako AC Servo Motor with brake

X,Y,Z Drive : Yako AC Servo Drive

Control System : Lambda 95A/ DSP NK 105 G2/ G3

Transmission System : Reducer

Working Voltage : AC 220 V 50HZ
