Description

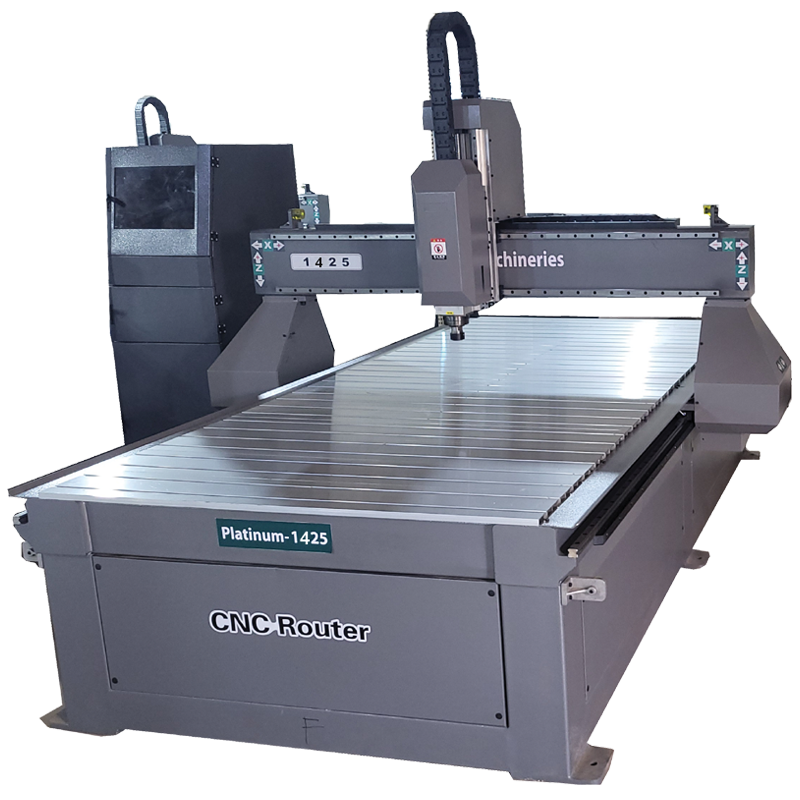

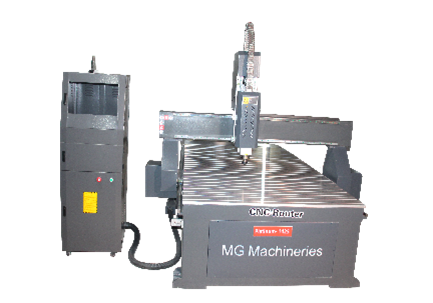

Model : Platinum 1425

Working Size      :   1300mm*2500mm*330mm

Table Surface      :   T-Slot Aluminum Working Table

Body Frame        :   Best Welded Structure

X,Y,Z Structure  :   Taiwan HIWIN Rails, 25mm Taiwan Linear

Guidway & Block 1.5m Helical Rack.

 Ballscrew Connection As Coupling Type

Inverter Power     :   7.5kw Folinn Inverter

Spindle Power      :   7.2kw HQD Air cooling Spindle (RPM: 24-30,000)

X,Y,Z Motor        :   All Leadshine AC Servo / AC Hybrid Servo Motor

X,Y,Z Drive         :   All Leadshine AC Servo / AC Hybrid Servo Drive

Control System    :   NC 95A / DSP NK 105 G3

Working Voltage :   AC 220 V 50HZ
