Description

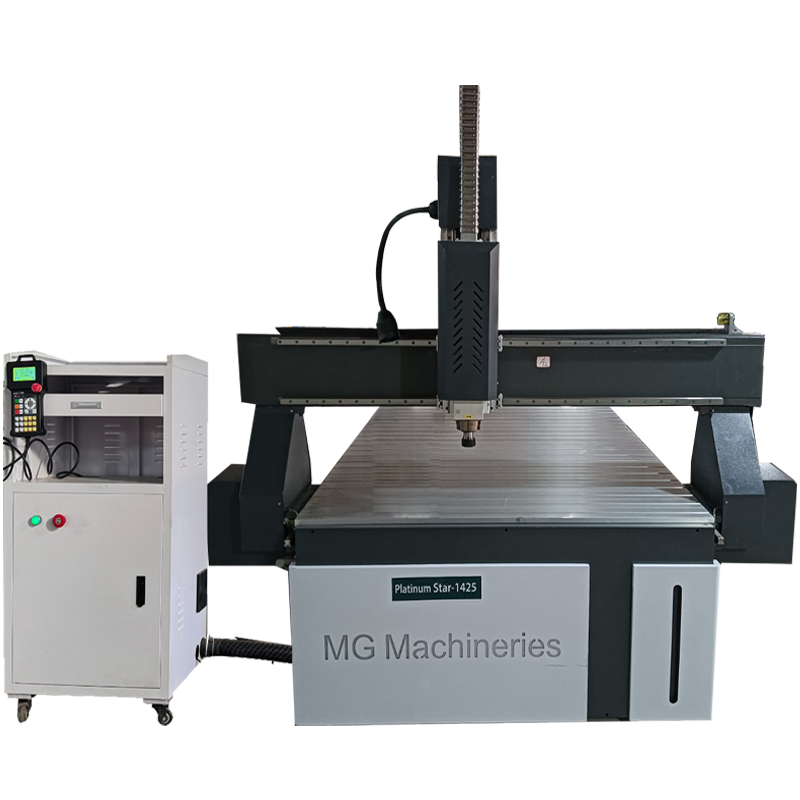

Model : Platinum Star 1425

Working Size       :   1300mm*2500mm*300mm

Table Surface       :   T-Slot Aluminum Working Table

Body Frame         :   Best Welded Structure

X,Y,Z Structure   :  Taiwan HIWIN Rails, 25mm Taiwan Linear

Guidway & Block 1.5m Helical Rack.

Ballscrew Connection As Coupling Type

Inverter Power     :  7.5kw Folinn Inverter

Spindle Power      :   6.0kw HQD 6.5kw Air cooling Spindle

X,Y,Z Motor        :   Panasonic Servo Motor

X,Y,Z Drive         :   Panasonic Servo Drive

Control System     :  NC 95A/ DSP NK 105 G2 / G3

Working Voltage  :  AC 220 V 50HZ
