Description

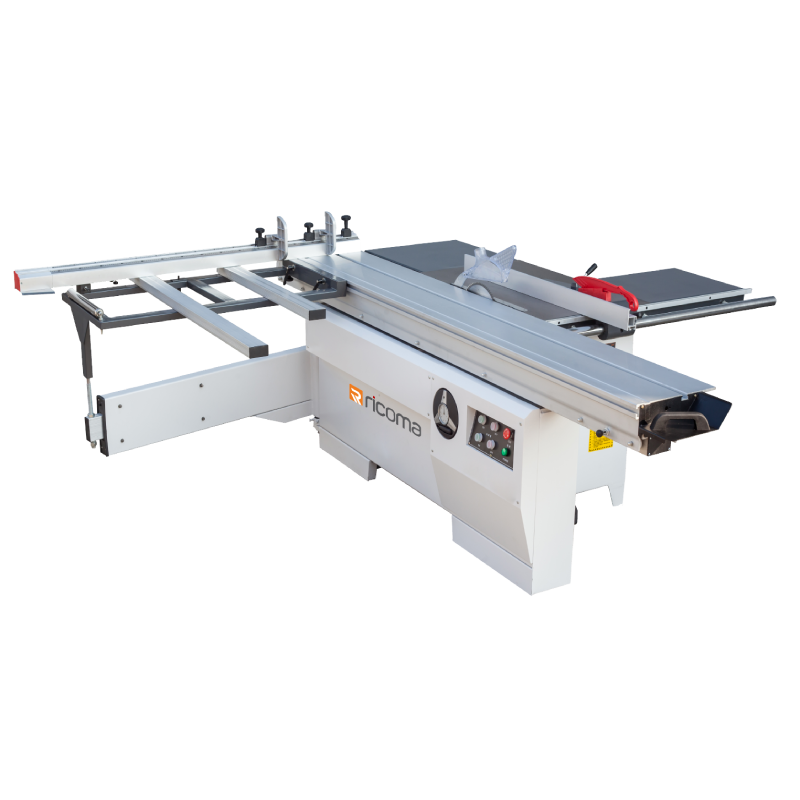

Model : Ricoma MG2800S
Dimension of sliding table : 2800*375mm
Gross cut capacity                : 2800mm
Width of cut between saw blade and ripe fence : 1250mm
Saw blade                              : 300mm (250-300)
Height of cut                        : 300 mm 70 mm
Speed of main saw blade   : 6000 RPM
Tiling saw blade                  : 45 Degree
Main motor                          : 4kw (5.5HP)
Scoring saw blade diameter : 120 mm
Speed of scoring saw blade diameter : 8000r/ min
scoring motor                      : 0.75kw (1HP)
Weight                                  : 700kg
Overall dimensions            : 2800*2550*900mm
