Description

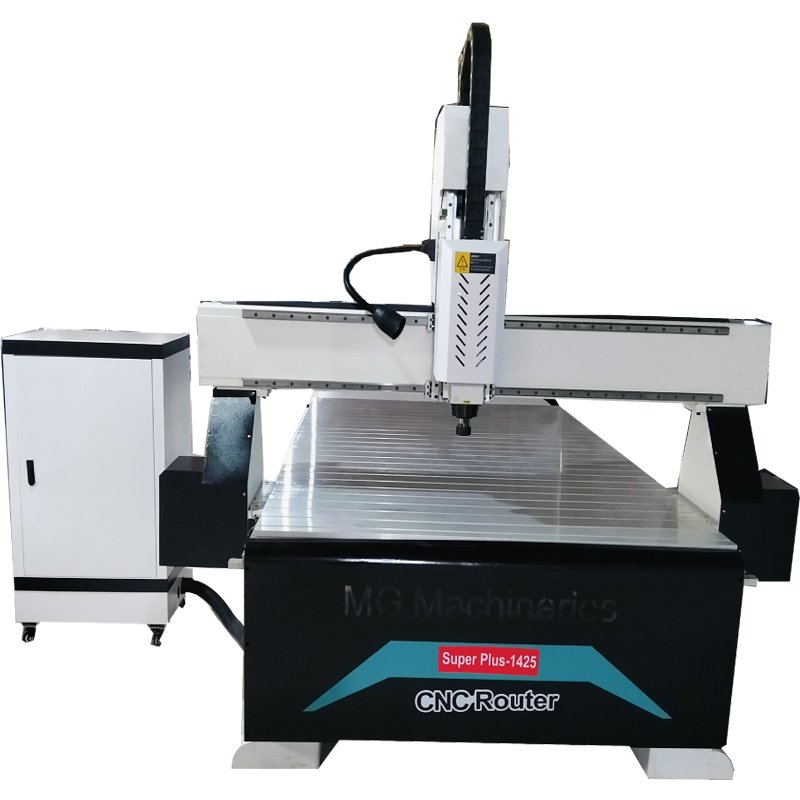

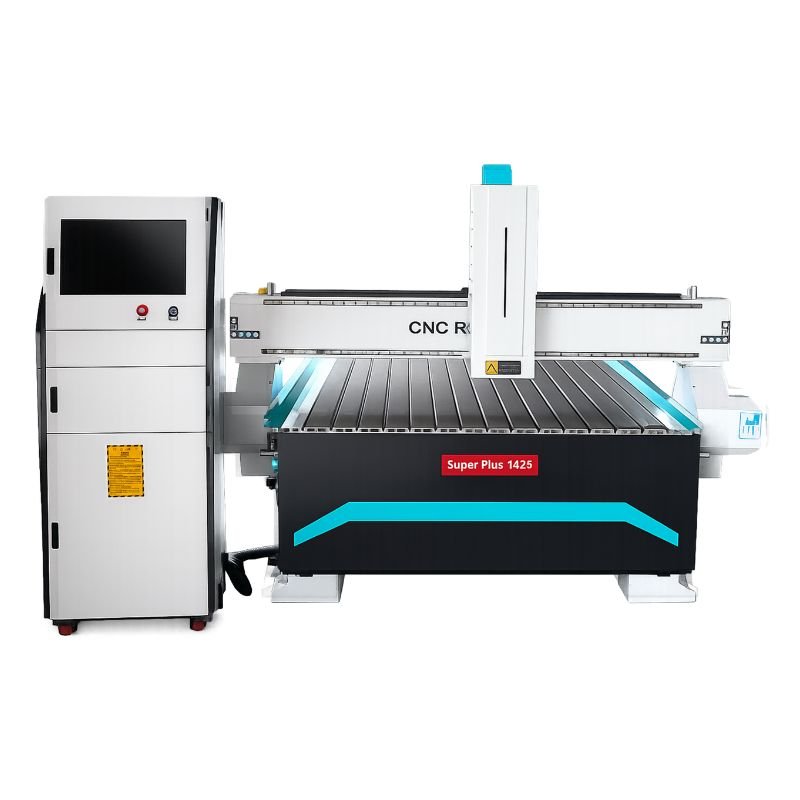

Model : Super Plus 1425

Working Size       :   1300mm*2500mm*300mm

Table Surface       :   T-Slot Aluminum Working Table

Body Frame         :   Best Welded Structure

X,Y,Z Structure   :  Taiwan HIWIN Rails, 25mm Taiwan Linear

    Guidway & Block 1.5m Helical Rack.

    Ballscrew Connection As Coupling Type

Inverter Power     :   7.5kw Folinn Inverter

Spindle Power      :   6.0kw HQD Air cooling Spindle

X,Y,Z Motor        :   All Leadshine Servo Motor

X,Y,Z Drive         :   Leadshine Servo Drive

Control System     :   NC Studio / DSP NK 105 G2 / G3

Working Voltage  :   AC 220 V 50HZ
